Fluid Bed Dryer

Working Principle:

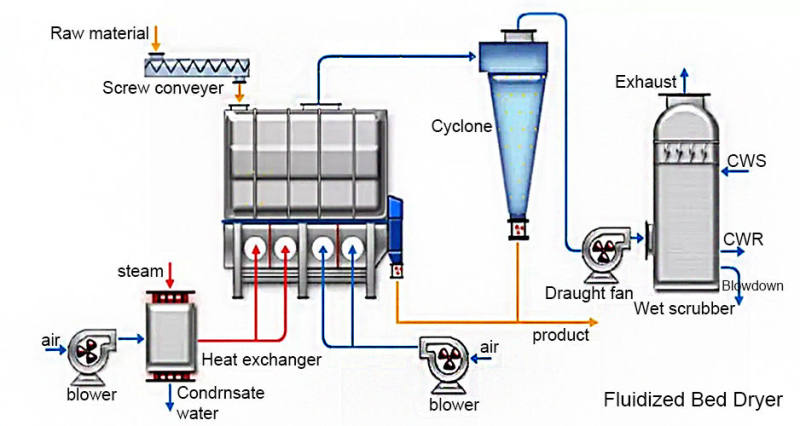

The fluidized bed is divided into the upper and lower bed body, air distributor, the inlet and outlet ports, etc., and the wet material entering the fluidized bed is in contact with the hot air above the air distribution plate, and the material particles are suspended in the air flow to form a fluidized state. The material and the hot air are heat-exchanged and dried, and the finished product is discharged from the discharge port of the fluidized bed, and the dust-containing gas is purified by the dust collecting device and then discharged into the atmosphere by the induced draft fan.

20200304112825436.jpg@!w1200

Characteristics:

1. Simple structure, convenient overhaul.
2. Simple steady operation.
3. The air and solid contact evenly with high thermal efficiency.
4. Low expenses of equipment maintenance.
5. Capable of lower temperature drying for the heat sensitive material.

6. Integration of drying and cooling bed, small floor space, low investment.

Applicable Materials:
Widely applied in chemical, mining, pharmaceutical, food, feed, industrial and municipal sludge treatment industries. Example: choline chloride, sodium bicarbonate, alum, potassium chloride, magnesium sulfate, feed yeast, adipic acid, ammonium nitrate, calcium chloride, calcium hypochlorite, potassium carbonate, potassium sulfate, sodium carbonate, sodium hydrogencarbonate, sodium metasilicate, potassium nitrate, PVC, CPE, PC, etc.

Specification:

Type	Bed Area(m2)	Dewaterability(kg/h)	Installed Power(kw)	Air Volume(m3/h)	Inlet Air Temperature(℃)	Dimensions(Length × Width × Height)(mm)
GWL3.0	3	100~450	25~50	3000~15000	80~250	4000×1000×5000
GWL5.0	5	200~800	40~80	5000~25000	80~250	4000×1500×5000
GWL8.0	8	300~1200	70~125	8000~40000	80~250	7000×1500×6000
GLW10.0	10	400～1500	80~160	10000~50000	80~250	7000×1800×7000
GLW20.0	20	800～3000	150~320	20000~100000	80~250	13000×1800×7000
GLW30.0	30	1500～4500	250~500	40000～150000	80~250	15000×2000×7000
GLW45.0	45	1800～7000	380~750	45000～230000	80~250	13000×4200×7000
GLW60.0	60	3000～9000	480~950	60000~300000	80~250	15000×4200×7000
GLW80.0	80	4000～12800	650~1200	80000~400000	80~250	20000×5000×7000



LOCATION ：HOME

PRODUCTS

MAIN INTRODUCTION

Fluidized bed dryer is also called fluidized bed. The drying chamber is rectangular box type, the bottom is uniform air chamber, and a porous air distribution plate is arranged between the air chamber and the drying chamber. Usually, a plurality of vertical baffles are arranged in the drying chamber to divide the fluidized bed into a plurality of small chambers, and each partition plate can adjust the distance between the bottom and the sieve plate up and down, so that the drying time of the material is more uniform. The powdery granular material is continuously fed into the first chamber of the dryer by the feeder. Since the material is in fluidized state, it can freely move from the first chamber into the adjacent rear chamber, and the dried product is discharged from the last chamber.
